Inspection Unmanned Aerial Vehicle (UAV)

===================================================

HEAVY PAYLOAD BATTERY-OPERATED MULTIROTOR UAV

Millimeter-wave (MMW) radar，Extra-long endurance，Target continuous identification and tracking.
Mobile Video Surveillance
Intelligent RecognitionMeter/Valve Group/Switch Status Readings
Gas DetectionQualitative and Quantitative Detection of Flammable/Harmful Gases
Environmental MonitoringTemperature/Humidity/Barometric Pressure/Sound Patterns
Flame DetectionDetection of Heat/Smoke/Fog/Flame Combustion Conditions
Equipment/Pipeline Leakage Monitoringenables continuous surveillance of industrial equipment and pipelines to promptly detect any leaks or malfunctions.
Advanced Navigation and Positioning Technology for More Accurate Early Warningenhances the precision and reliability of robotic or autonomous inspection systems by integrating sophisticated navigation and positioning capabilities.
Centralized Control and ManagementMulti-robot Collaboration, Comprehensive Data Monitoring Dashboard
Two-way Voice Intercom between Front and Back Ends to Assist Operation, Maintenance, and Repairenables real-time, bidirectional voice communication between personnel located at the front end (e.g., field technicians, operators at remote sites) and those at the back end (e.g., control rooms, maintenance centers).
Data AnalysisReport Generation/Threshold Comparison/Trend Analysis
Key Parameters
Movement ModeTrack-based Movement
Operating Temperature-20~60°C
Dimensions1000x550x777mm
Equipment MaterialAluminum Alloy Structure + ABS Shell
Power SupplyLithium-ion Battery
Explosion-proof LevelEx d lIC T6 Gb
Communication ModeWiFi/4G/5G Optional
Visible Light Camera30x Optical Zoom, 1080P Resolution
Weight100kg
Protection LevelIP66
Infrared Thermal ImagingSupported

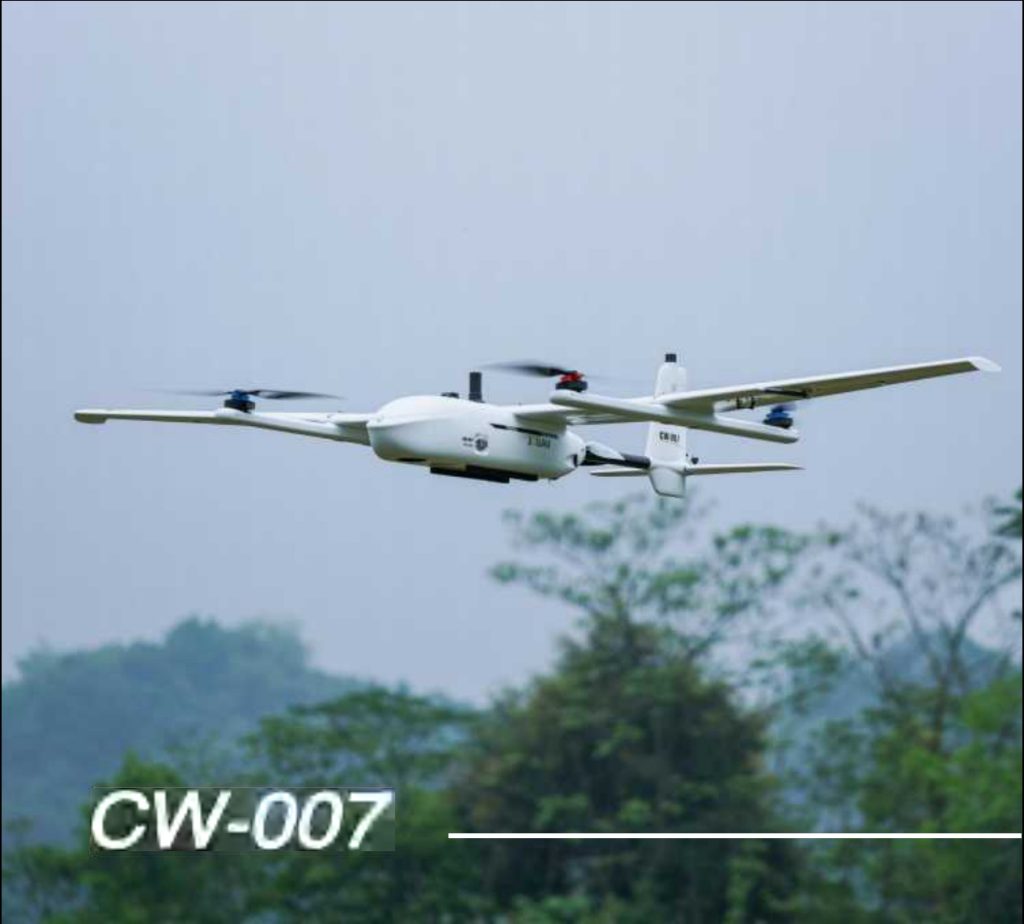

PORTABLE BATTERY- OPERATED LIGHTWEIGHT UAV

Intelligent power management
Point-to-point topographic-match intelligent flight
Self-locking propeller

Fuselage/Wingspan2.06m/3.54m[6.76ft/11.61ft]
ElectroMotorLownoise,brushless
MTOW17kg[37.5lb]
Payload3kg[6.61lb]
LinkRangeUpto50km[31.1mi]
DGPSRTK/PPK
CarryingCaseSize(L*W*H)1370×605×525mm
Endurance120-180min
CruisingSpeed61.2km/h[33.1kts]
WindResistance10.8-13.8m/s
Max.Takeoffaltitude/Ceiling4500m/6500m[14763.8ft/21325.5ft]
Takeoff&LandingVTOL

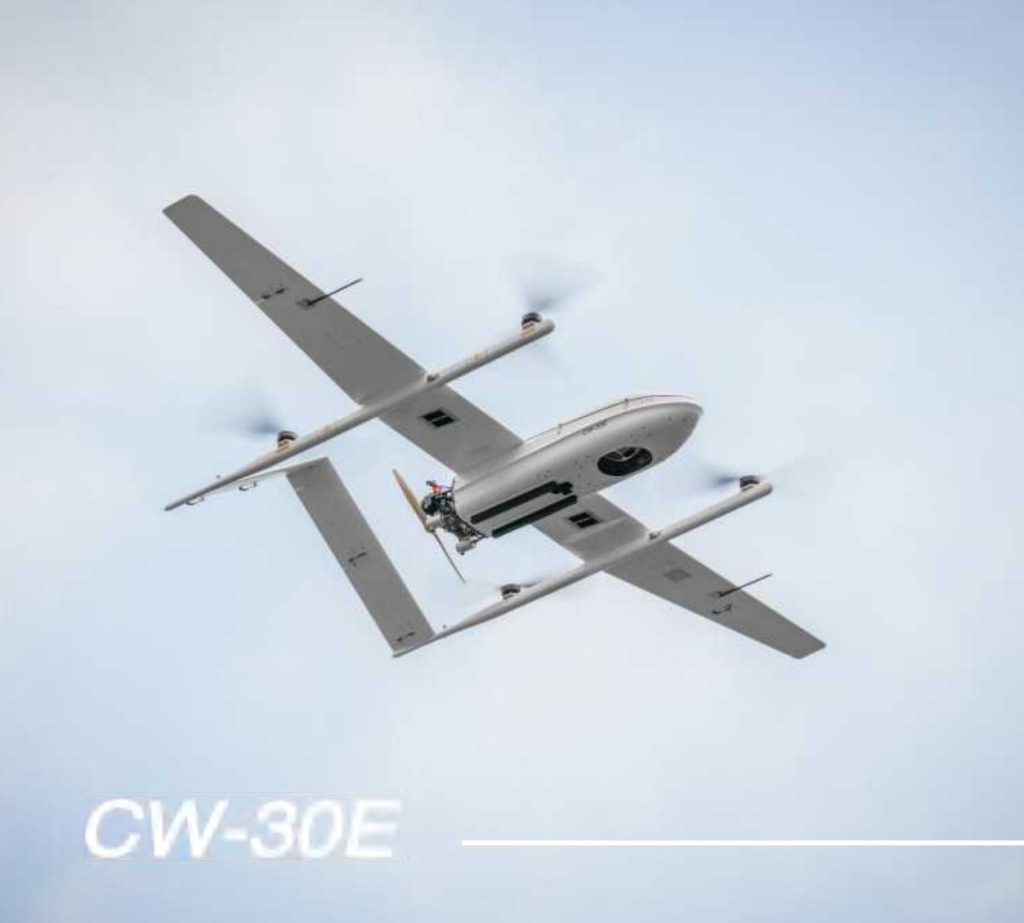

LONG ENDURANCE BATTERY-OPERATED SMALL UAV

MMW radar for forward and bottom objects detection
Point-to-point topographic-match intelligent flight
Heated & Drained Pitot Tube

Fuselage / Wingspan2.18m / 4.0m [ 7.15ft / 13.12ft ]
EFI Gasoline Engine64cc two-stroke
MTOW32kg [ 70.5lb ]
Payload6kg [ 13.23lb ]
Link Range50km [ 31.1mi ], Option: 100km [ 62.1mi ]
DGPSRTK / PPK
Carrying Case Size (L*W*H)1550×690×690mm
Endurance360min
Cruising Speed82.8km/h [ 44.7kts ]
Wind Resistance13.9-17.1m/s
Max. Takeoff altitude / Ceiling4500m / 6500m [ 14763.8ft /21325.5ft]
Takeoff & LandingVTOL

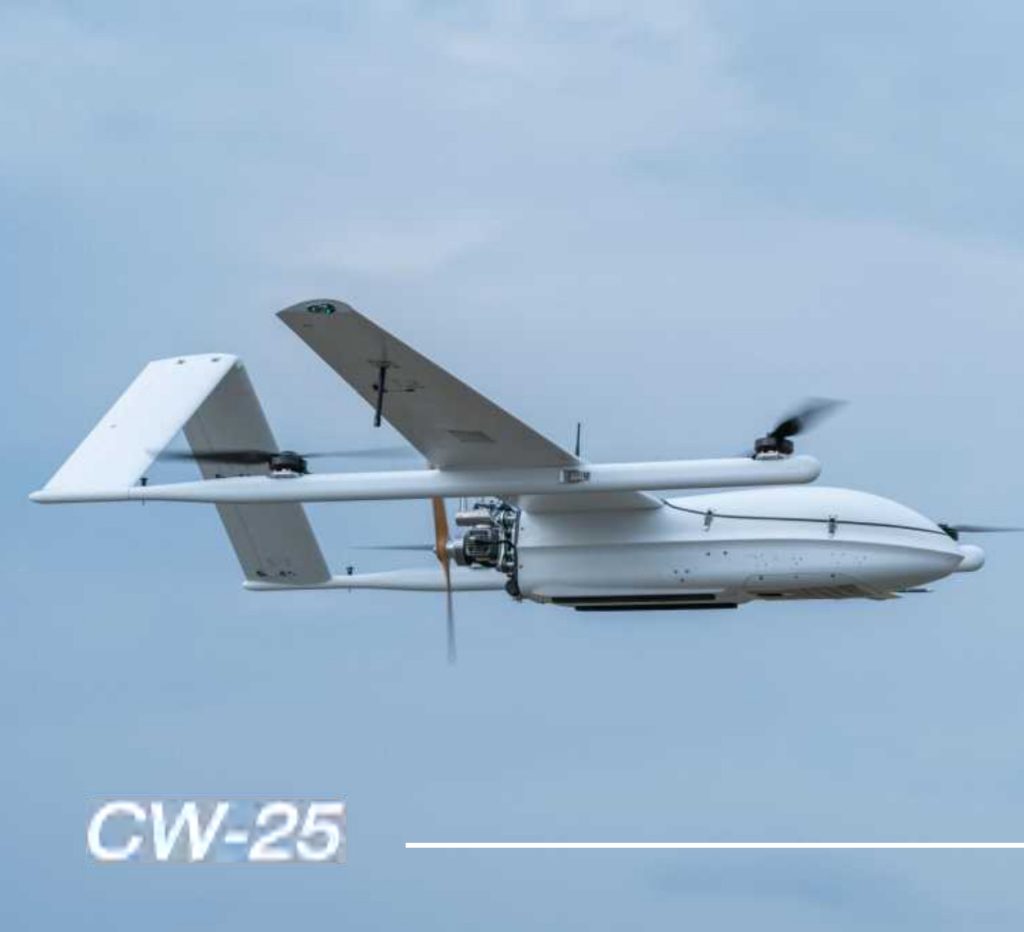

LONG ENDURANCE BATTERY-OPERATED SMALL UAV

Dual-antenna heading system
Point-to-point topographic-matchintelligent flight
Heated & Drained Pitot Tube

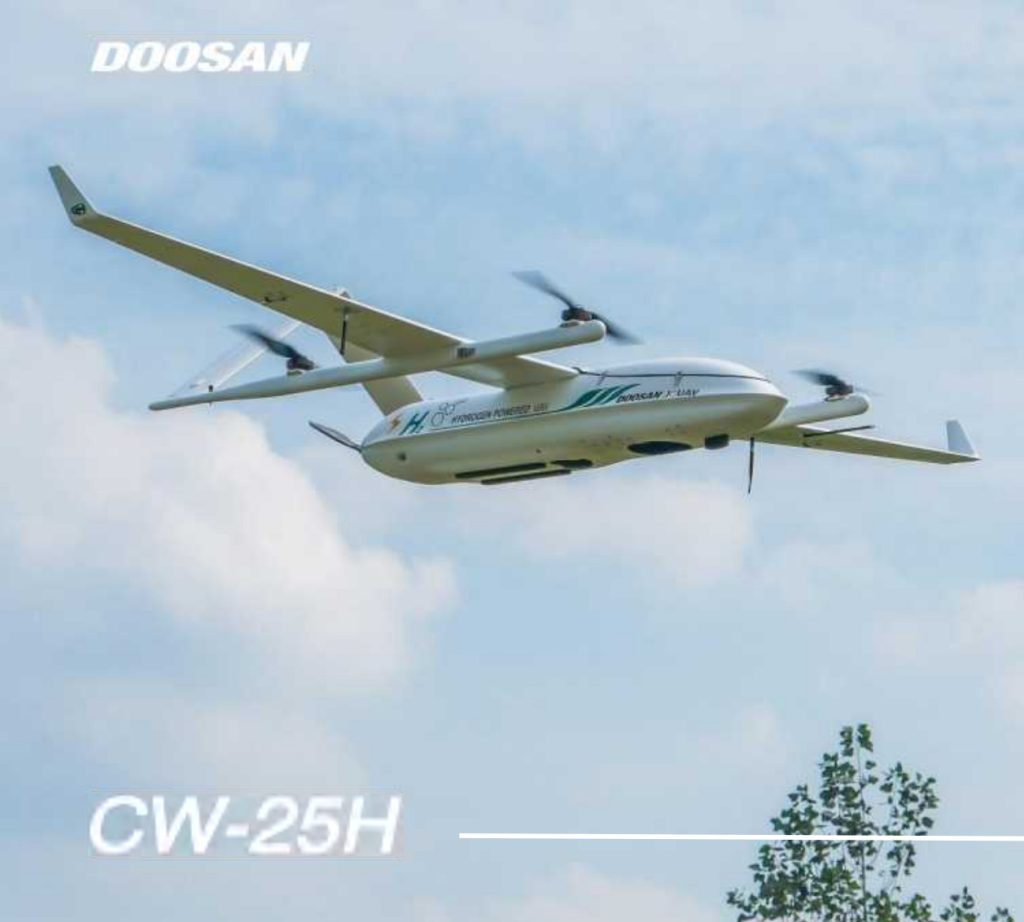

HYDROGEN-ELECTRIC HYBRID SMALL UAV

Dual-antenna heading system
Point-to-point topographic-matchintelligent flight
Heated & Drained Pitot Tube

Fuselage / Wingspan2.4m / 4.4m [ 7.87ft / 14.43ft ]
4 Stroke EngineEFI Gasoline, Option: Heavy Oil
MTOW38kg [ 83.8lb ]
Payload8kg [ 17.6lb ]
Link Range80-100km [ 49.7-62.1mi ]
DGPSRTK / PPK
Carrying Case Size (L*W*H)1700×700×350mm, 1700×700×450mm
Endurance8hrs
Cruising Speed90km/h [ 48.6kts ]
Wind Resistance13.9-17.1m/s
Max. Takeoff altitude / Ceiling3500m / 6000m [ 11482.9ft / 19685.1ft ]
Takeoff & LandingVTOL

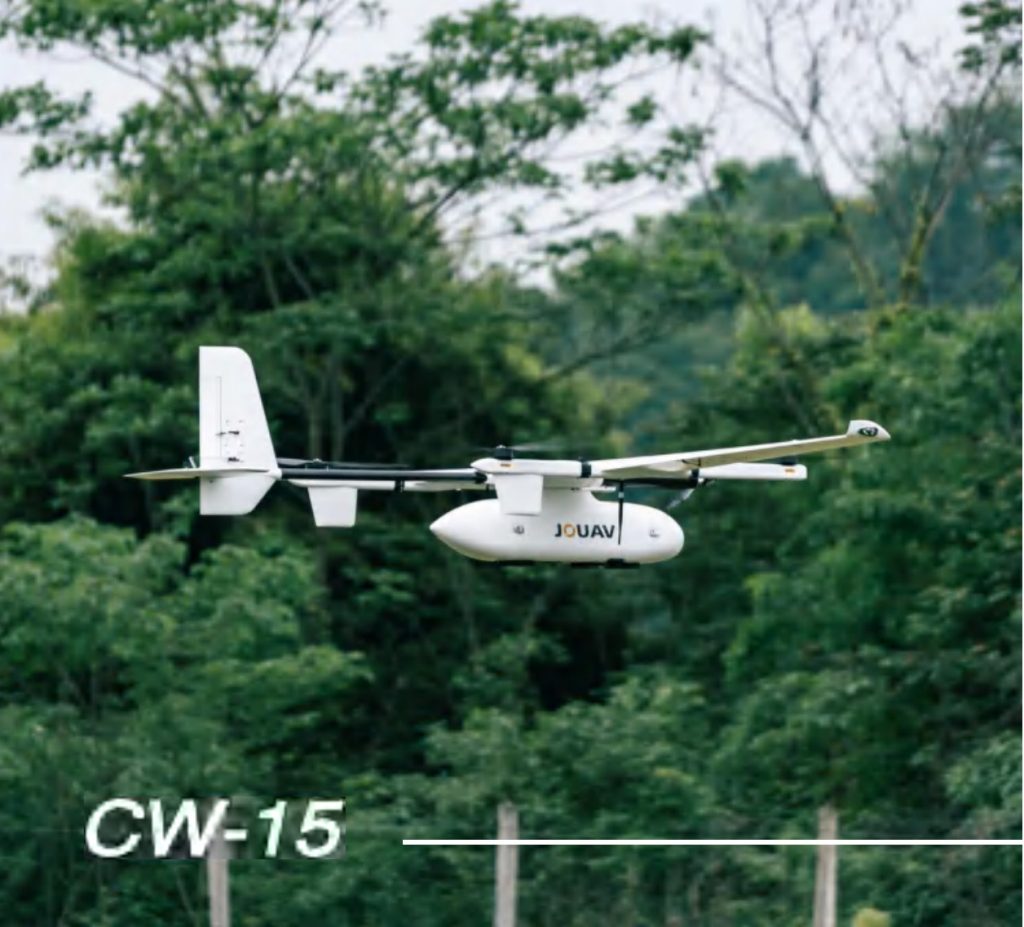

LONG ENDURANCE BATTERY-OPERATED SMALL UAV

Dual-antenna heading system
Point-to-point topographic-matchintelligent flight
Heated & Drained Pitot Tube

Fuselage/Wingspan2.08m/4.2m[7.15ft/13.78ft]
ElectroMotorLownoise,brushless
MTOW31kg[68.3lb]
Payload6kg[13.23lb]
LinkRange50km[31.1mi],Option:100km[62.1mi]
DGPSRTK/PPK
CarryingCaseSize(L*W*H)1640×640×630mm
Endurance210min
CruisingSpeed72km/h[38.9kts]
WindResistance13.9-17.1m/s
Max.Takeoffaltitude/Ceiling4000m/6000m[13123.4ft/19685.1ft]
Takeoff&LandingVTOL

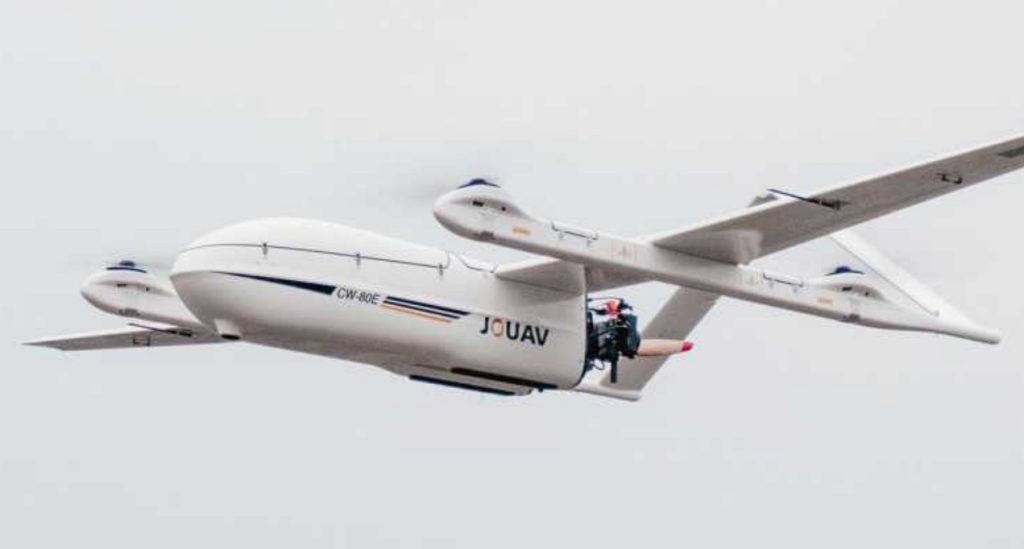

LONG ENDURANCE HYBRID UAV

Dual-antenna heading system
Point-to-point topographic-match intelligent flight
Self-locking propeller

Fuselage / Wingspan3.1m / 5.0m [ 10.17ft / 16.40ft ]
MTOW100kg [ 220.5lb ]
Payload20kg [ 44.1lb ]
Link Range200km [ 124.3mi ]
DGPSRTK / PPK
Navigation LightStandard
Endurance8hrs
Cruising Speed100km/h [ 53.9kts ]
Wind Resistance13.9-17.1m/s
Max. Takeoff altitude / Ceiling2500m / 5000m [ 8202.1ft / 16404.2ft ]
Takeoff & LandingVTOL

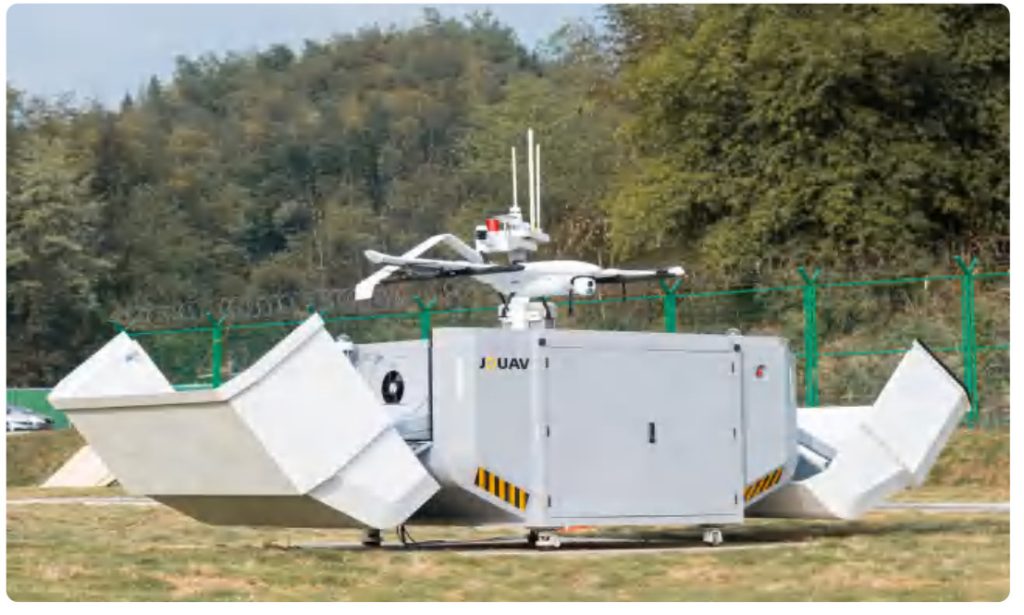

LARGE PAYLOAD LONG ENDURANCE HYBRID MEDIUM- SIZED UAVguishing Robot

Intelligent power management, Multiple payloads，ADS-B situational awareness system，Heated & Drained Pitot Tube.

Size (W×L×H)2.45×1.9x 1.9m [8 x 6.2 x 6.2f] (folded)
5.3 x 1.9 x 1.3m [17.3 x6.2 x 4.31] (unfolded)
Operating Altitude4500m [ 14763.8ft ]
Power SupplyAC 220V 50Hz
Drone Battery Recharge MethodAutomatic Charging
Drone Charging Time81% in 70min, 100% in 120min
Maintenance IntervalHalf Yearly/Time
Other FunctionsAir pressure, temperature, humidity, wind speed/direction, rainfall, and real-time images; Automatic fire suppression;
External environmental monitoring;
Real-time dual-light surveillance video transmission

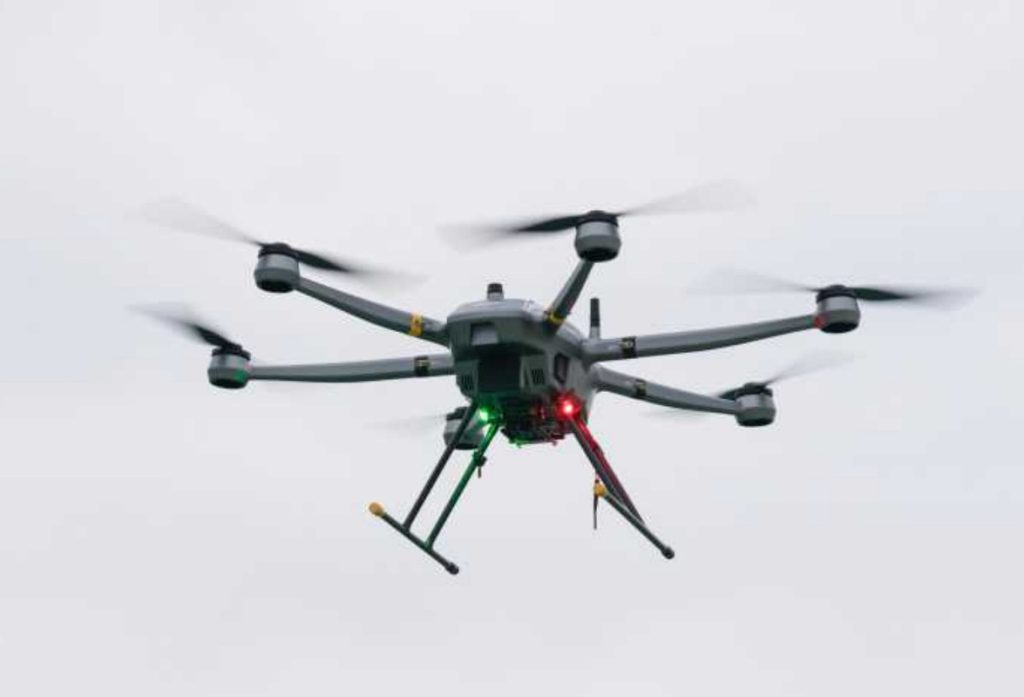

LARGE PAYLOAD LONG ENDURANCE HYBRID MEDIUM- SIZED UAVguishing Robot

Intelligent power management, Multiple payloads，ADS-B situational awareness system，Heated & Drained Pitot Tube.

Number of Rotors6
Size2520 x 2300 x 630mm (unfolded)
1057 x 605 x 630 (folded)
Payload10kg [ 22.0lb ]
Max. Takeoff Weight24.5kg [ 54.0lb ]
DGPSRTK / PPK
Navigation LightStandard
Endurance70 minutes (with gimbal camera)
75 minutes (with LiDAR)
Top Speed18 ms [ 34.9kts ]
Hover Accuracy±0.15m
Max. Flight Altitude4500m[ 14763.8ft ]
IP RatingIP55
